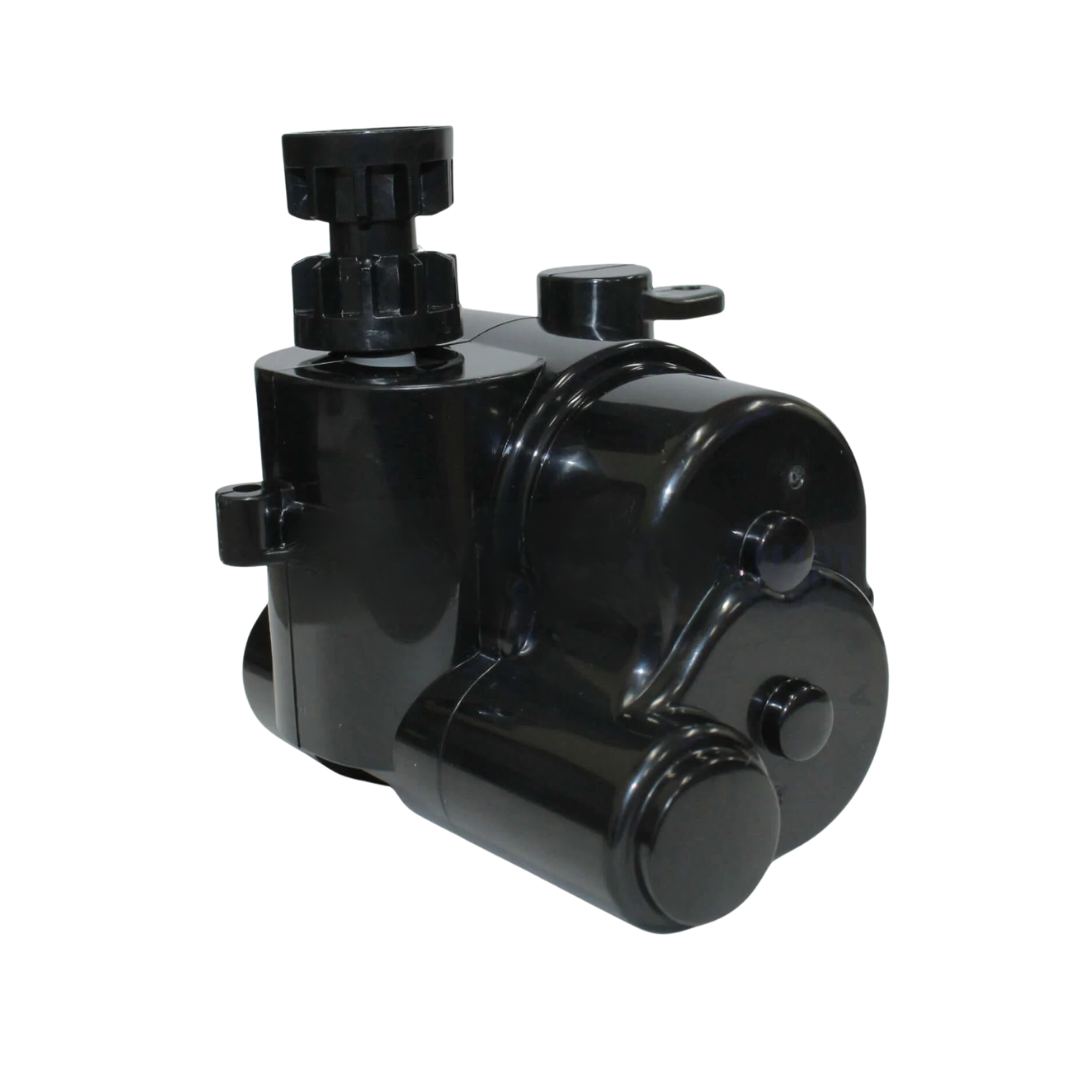

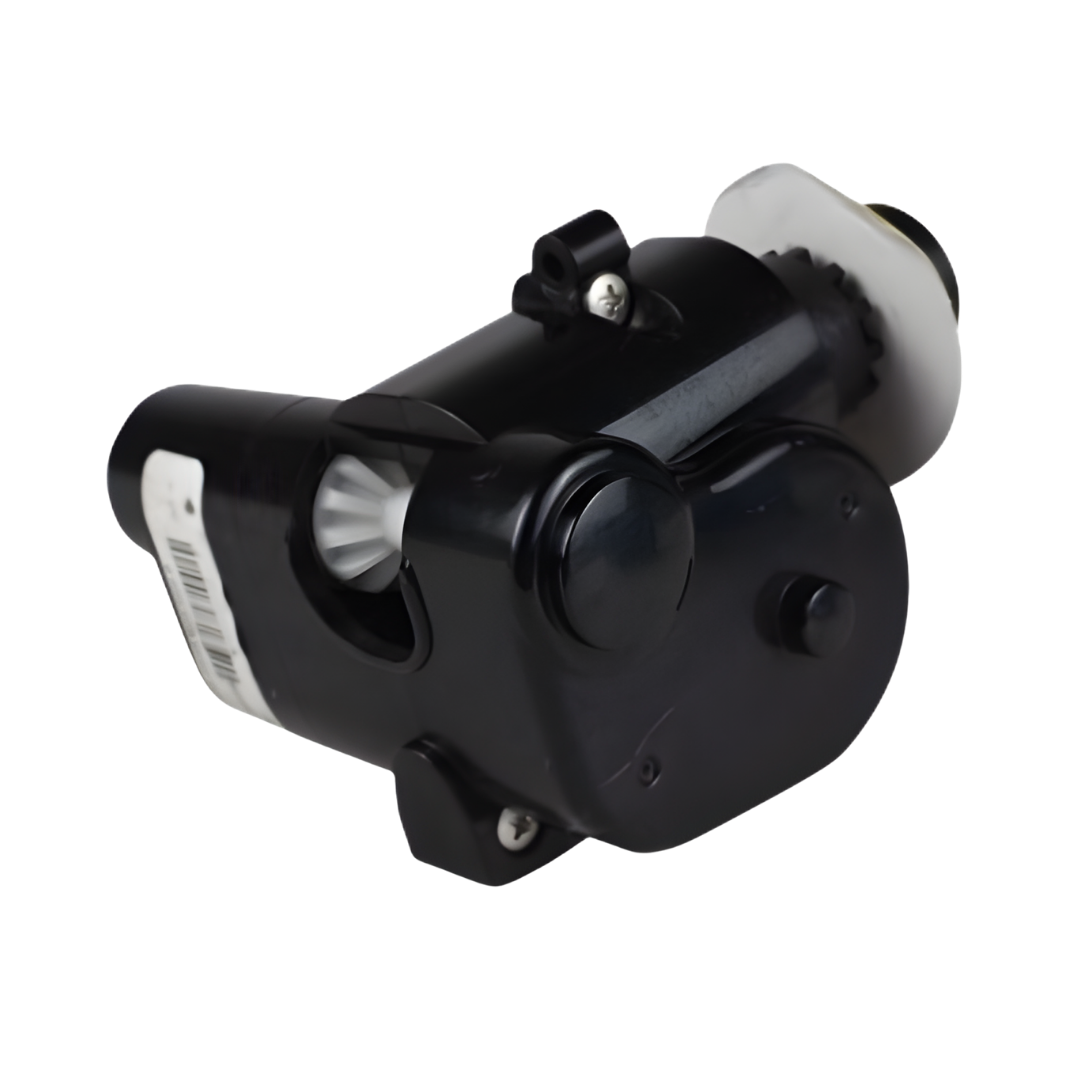

ZODIAC MX8 Gear Box Assembly Side B

The Zodiac MX8 Gearbox Side B is a crucial component for the MX8 pool cleaner, specifically designed as the reversing assembly part of the system. It works in tandem with Gearbox Side A to provide comprehensive and efficient cleaning coverage of your pool.

Key Features and Functions:

1. Directional Control: The Side B gearbox is primarily responsible for the reversing action of the pool cleaner, allowing it to navigate effectively across the pool’s surface.
2. Independent Operation: The MX8 features two gears that operate independently. Together, Sides A and B facilitate the correct directional change from forward to reverse movement.
3. Enhanced Coverage: This gearbox plays a significant role in ensuring that the cleaner can steer in all directions, effectively covering pool floors and walls.
4. Genuine Zodiac Part: As an original Zodiac part, it guarantees compatibility and performance with your MX8 pool cleaner.
5. Identification: The part is marked with a small ‘B’ to indicate that it is for Side B of the pool cleaner, ensuring easy identification and correct installation.

Installation Guide:

1. Prepare the Pool Cleaner: Begin by turning off and removing the pool cleaner from the water. Lay it on a flat surface for easy access to the gearbox.
2. Access Gearbox: Locate the panel covering the Side B gearbox and carefully remove it. This may involve unscrewing or unclipping, depending on your model.
3. Remove Old Gearbox: Detach the old gearbox from its position. This might require the loosening of screws or clips that hold it in place.
4. Install New Gearbox: Place the new Zodiac MX8 Gearbox Side B into the designated spot. Ensure that it’s properly aligned and secured with screws or clips.
5. Reassemble and Test: Once the new gearbox is installed, reassemble any removed parts and test the pool cleaner in the water to ensure it’s functioning correctly.

Tips and Precautions:

• Ensure the replacement part is specifically for the Zodiac MX8 model to guarantee compatibility.
• Handle all parts with care to avoid any damage.
• If you are unsure about any part of the installation process, consult the user manual or contact a professional for assistance.

Regular maintenance, including timely replacement of components like the Zodiac MX8 Gearbox Side B, is essential for the longevity and efficiency of your pool cleaning equipment. Proper care ensures your pool remains clean and hygienic for enjoyable swimming experiences.
