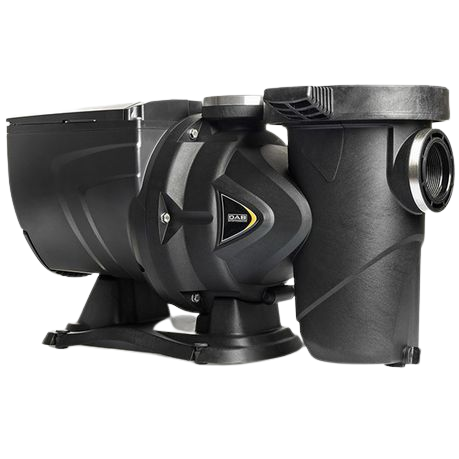

POOL PUMP AND MOTOR DAB E. SWIM 150 1.1KW

Introduction

Introducing the E.SWIM by DAB, the pinnacle of swimming pool pump technology. This electronic pump, fitted with a robust high-capacity strainer basket, is a masterclass in silent operation and energy efficiency. With its groundbreaking water-cooled motor and advanced engineering hydraulics, it offers an unparalleled pool experience for both domestic and residential settings.

About the Brand

For over four decades, DAB—an Italian hallmark of excellence—has been revolutionizing water management technology. Committed to both innovation and quality, DAB stands as a beacon for reliable, efficient, and sustainable technological solutions in water movement and management.

Key Features

1. Silent & Energy-Efficient: Thanks to its innovative water-cooled permanent magnet motor, the E.SWIM operates in near silence, regardless of its speed setting. The absence of a motor fan further amplifies its quiet performance.
2. Advanced Hydraulics: The pump boasts meticulously designed impellers and volutes, ensuring peak efficiency and reduced consumption.
3. Synchronous Brushless Motor: Integrated with a frequency converter, this motor offers precision and longevity.
4. Stability and Quietness: The support base with rubber feet dampens vibrations, ensuring an even quieter operation.
5. Cutting-Edge Electronics: Two dedicated 32-bit processors—one for motor control and another for the user interface—power the E.SWIM. With Trench IGBT technology, it guarantees both robustness and efficiency.
6. User-Friendly: With intuitive interfaces and external input capabilities, users can effortlessly configure the pump to their preferences.
7. Smart Operation: The onboard computer, paired with intelligent software, enables adjustable VARIABLE SPEED or VARIABLE FLOW operations. This sensorless operation ensures optimal performance while minimizing energy usage.
8. Ready for the Future: The pump is wireless-ready, primed for seamless communication with DAB’s connectivity devices.

Specifications

• Dimensions: 550mm (L) x 300mm (W) x 309mm (H)
• Weight: 19 kg

Conclusion

The DAB E.SWIM 150 is not just a pump; it represents the future of pool management technology. If you’re looking for a combination of silent operation, energy efficiency, and state-of-the-art features, this pump is your ideal choice.

INSTALLATION INSTRUCTIONS

We recommend that the pump is installed by a qualified pool professional or electrician.

A good installation of your pool pump will result in many years of trouble-free operation. Careful attention must be paid to the following:
1. Piping: The suction and discharge pipes must not be smaller in diameter than the pump connection i.e., Suction pipe diameter 50mm minimum (recommended 63mm), outlet pipe diameter 50mm minimum. Suitable unions should be used on the pump connections or placed in the lines adjacent to the pump connections in case the pump needs to be removed at any time. Do not support the pipework on the pump or vice versa. Make sure all pipe connections are completely water/airtight by using a suitable pipe jointing compound. Keep suction pipe as short as possible and only use pipes that are sufficiently rated to work at a minimum of 4 bar pressure. The suction line should enter the pump straight and horizontally for a length of at least 4 x the diameter of the pipe. The pump is a self-priming pump, which can be installed above or below water level, if you choose to go below, be sure to connect a control valve on your suction pipe between the pool weir/skimmer and the pump, which will prevent your pump being flooded when you open the lid to clean the pump leaf basket. Do not over tighten fittings into the inlet and outlet of the pump. Position pump on a flat level surface not exposed to flooding, as the pump motor is not waterproof.

2. Pump Positioning: (Important for motor cooling): We recommend that the pump be positioned at a level of no more than ± 300mm above your pool water level. Again, we stress the fact to keep the suction line as short as possible. A minimum clearance of 150mm must be allowed behind the motor fan cowling to the nearest obstruction to ensure proper air ventilation and easy access for servicing. The pump house/box must also have provision for adequate drainage facilities.

3. Ventilation: As the electric motor is fan cooled, sufficient ventilation must be allowed at all times during operation. Failure to do this will cause overheating resulting in premature bearing failure and/or motor burnout. If your pump house/box does not have ventilation holes the lid or door should be left open during operation of the pump.

4. Drainage: Flooding of the electric motor is the most common cause of motor failure. It is essential that adequate drainage be provided in the pump house/box. If the motor fails as a result of flooding, then there is no warranty whatsoever irrespective of how the water penetrated the motor. The pump must be protected from rain and flooding.

5. Electric Connections: These must be carried out by suitably qualified people only. Do not change the motor position as it is provided with a drain hole at the bottom to drain off any water which may leak past the mechanical shaft seal. A cable gland must be fitted to the terminal box. NOTE: The length of cable supplied with the pump is for testing only and should be replaced with suitably rated cable. Minimum specification 60245IEC66 (HO7RN-F).

6. Rotation: Before checking the rotation, drain the pump leaf trap of water. The correct rotation is clockwise when viewed from the motor end. Pumps with 220-volt single phase motors are wired at the manufacturer for the correct rotation.

How to keep your pool pump in good running condition
1. Clean the leaf trap in the pump and pool weir regularly.
2. Do not allow dust to accumulate on the motor as this affects the cooling process.
3 Do not leave foreign objects lying on the motor.
4 Change the rubber 0-Ring in the lid at 1-year intervals to maintain a good seal. The face on the leaf trap where the 0-Ring sits must be kept clean and smooth.
6. DO NOT RUN THE PUMP DRY or under closed valve conditions for extended periods.
7. Backwash your filter once a week, or when the pressure exceeds 50% above the starting operating pressure.
8. No Vaseline or petroleum-based lubricants should be used for lubricating 0-Rings or seals. Only silicone paste should be used.

Troubleshooting a pool pump:
Safety first! Isolate the motor before checking for problems.

Motor fails to start:
A) Check that incoming mains wires are connected to the correct motor terminals.
B) Check that the mains supply coming into the motor at the terminals corresponds with the data on the motor name plate.
C) Remove the fan cowl of the motor or insert a screwdriver in the slot of the motor shaft at the fan end and check if the shaft can be rotated freely. If this is not the case, the motor will have to be removed to check if foreign objects are jammed in the impeller.
D) Reset thermal overload (if fitted) at the reset button on motor terminal box.

Motor hums but will not start:
A) Remove the fan cowl of the motor or insert a screwdriver in the slot of the motor shaft at the fan end and check if the shaft can be rotated freely. If this is not the case, the motor will have to be removed to check for faulty bearings, or if foreign objects have become jammed in the impeller. If the shaft can be rotated, check that the capacitor is functioning.
B) Check that phases of motor windings are not down to earth. If they are the motor has been wet or is burned out.

Pump runs but will not pump or pumps poorly.
A) Check direction of rotation.
B) Make sure pump is properly primed.
C) Make sure correct valves are open.
D) Make sure that leaf trap and filter are clean. Backwash filter if necessary.
E) Make sure that leaf trap lid and “0” Ring are sealing properly, and that lid lock handle is tightened firmly. This can normally be diagnosed by air bubbles entering the pool at return point.

Water leaks from drain seal plate flange: The mechanical seal needs to be replaced.

Motor runs noisily:
A) Clean leaf trap and check for any obstruction on the suction line.
B) If this does not help, the motor bearings may need replacement.

Warranty

Thank you for selecting the DAB EUROSWIM Swimming Pool Pump for your pool requirements. We are committed to delivering a high-quality and dependable pool pump. To ensure optimal performance and longevity, kindly follow the instructions provided in the manual. Please be aware that warranty claims will only be considered valid if the manual’s instructions are adhered to.

Warranty Coverage: The DAB EUROSWIM Swimming Pool Pump is covered by a 24-month warranty against defects in material and workmanship. This warranty period commences from the date of purchase.

Fully Factory Tested: Rest assured that your DAB EUROSWIM Swimming Pool Pump has undergone comprehensive testing at the factory to ensure its quality and functionality.

Sole Responsibility of the Manufacturer: In the event of a valid warranty claim, the manufacturer’s sole obligation to the end user is as follows:

Repair: If the DAB EUROSWIM Swimming Pool Pump or any of its components are found to be defective in material or workmanship, the manufacturer will perform necessary repairs without any cost to you. Our goal is to promptly restore your pump’s functionality.

Limitations and Exclusions: Please note that this warranty constitutes the complete warranty for the product and supersedes all other warranties, whether expressed or implied. This includes any implied warranties by distributors, salespersons, or fitness for a specific purpose. The warranty specifically covers defects in materials and workmanship of the product itself. It does not extend to travel, installation, or labor costs related to the removal or reinstallation of the product.

The warranty will be rendered null and void if damages or issues result from failure to comply with the manual’s instructions or accepted engineering practices.

Retaining proof of purchase is important, as warranty claims may require it.

For any warranty-related inquiries or claims, please contact our Customer Support. We are here to assist you throughout the process and provide the necessary guidance.

Thank you for choosing the DAB EUROSWIM Swimming Pool Pump. We have confidence in the performance and durability of our product and are dedicated to ensuring your satisfaction.
